• X Axis: 600(23.62)
• Y Axis: 400(15.75)

• Z Axis: 500(19.69)

• X Axis: 1540(60.63)
• Y Axis: 760(29.92)

• Z Axis: 660(25.98)

• X Axis: 600(23.62)
• Y Axis: 400(15.75)

• Z Axis: 500(19.69)

• X: 120”
• Y: 40”

• Z: 35”

• Capacity of 20,000 pounds.
• Table Travel (X) 3,200 (125.98), 4,200

• [mm (in)] (165.35), 5,200 (204.72)

• This 5-axis multi-plane machining center combines high speed with high rigidity.
• Table Dimensions mm (in) 1,000×1,000 (39.37×39.37)

• Travel X/Y/Z mm (in) X-Axis: 1,650 (64.96)
• Z-Axis: 1,000 (39.37) Okuma l470M
• Y-Axis: 1,300 (51.18)

OKUMA Horizontal Turning Centre is equipped with live tooling. Spindle speed is up to 3000 rpm and 3 number of axis,total 12 stations and motor power is 22 kw

• Cutting Diameter: 16.500″
• Cutting Length: 48″L470_M

DARBERT MANUAL MILLING

• 25″(Y Axis)
• X 15″(X Axis)
• X 14″(Z Axis)

Coupled with user friendly design and energy saving technology.

OKUMA Horizontal Turning Centre is equipped with live tooling. Spindle speed is up to 3000 rpm and 3 number of axis,total 12 stations and motor power is 22 kw

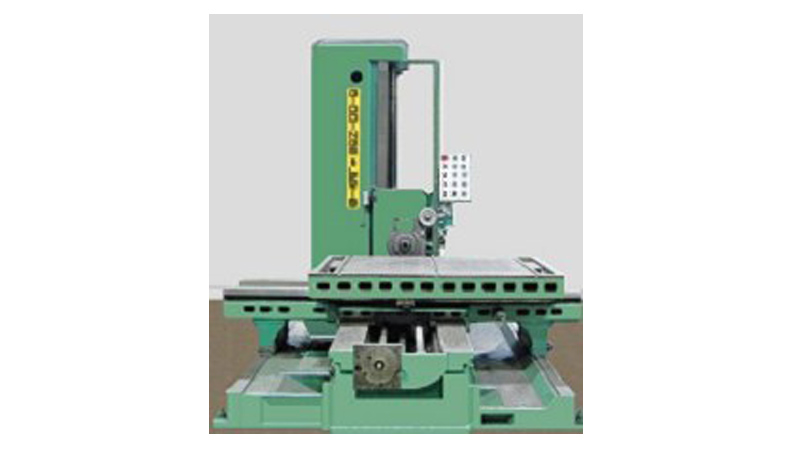

• TOS-W100A Floor Type Horizontal Boring Mill
• 1 meter Table Capacity

• Maxgrinding width crosswise 12″
• Max distance table surface to spindle centerline 24″
